Viano Leverset
Viano Leverset - Image 2
Viano Leverset - Image 3
Viano Leverset - Image 4

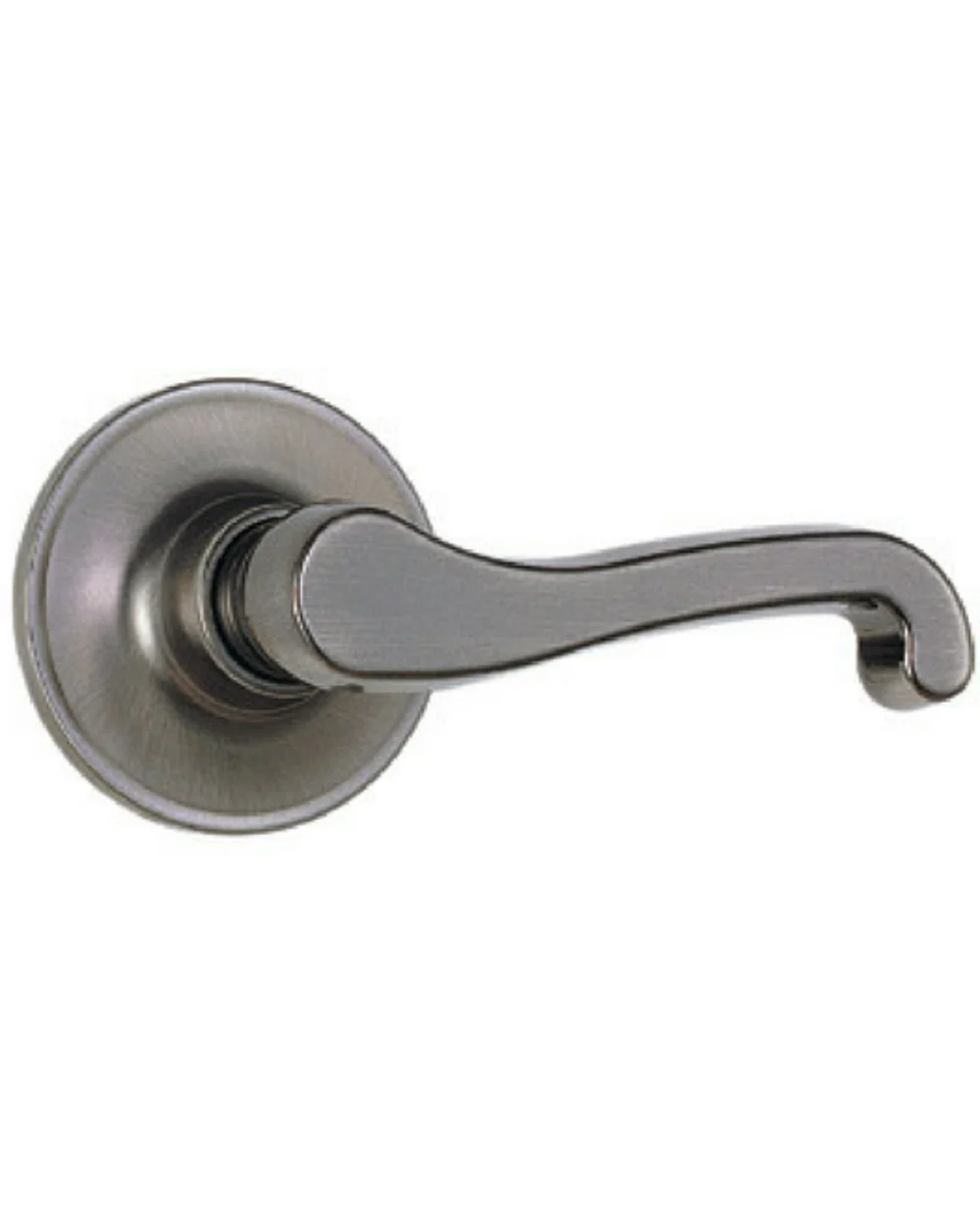

Viano Leverset

Price range: $45.76 through $109.20

Lifetime mechanical warranty | Five years finish warranty General Specifications (for full product specs download the forms below) ANSI/BHMA A156.39 Grade 3 Reversible leverset Door Prep.: 2-⅛” Cross Bore; 1” Edge 5-pin KW keyway; solid brass cylinder Latch: 1” face, ¼” radius corner, 2-⅜” backset Strike: 2-¼” x 1-¾” full-lip, ¼” radius corner ADA compliant leverset available All locks include an adjustable latch for 2-3/8″ and 2-3/4″ backsets. Download Specification Sheet | Download Installation Sheet

Category: , , , ,

Description

Lifetime mechanical warranty | Five years finish warranty

General Specifications (for full product specs download the forms below)

  • ANSI/BHMA A156.39 Grade 3
  • Reversible leverset
  • Door Prep.: 2-⅛” Cross Bore; 1” Edge
  • 5-pin KW keyway; solid brass cylinder
  • Latch: 1” face, ¼” radius corner, 2-⅜” backset
  • Strike: 2-¼” x 1-¾” full-lip, ¼” radius corner
  • ADA compliant leverset available

All locks include an adjustable latch for 2-3/8″ and 2-3/4″ backsets.

Download Specification Sheet | Download Installation Sheet

Additional information

Finish

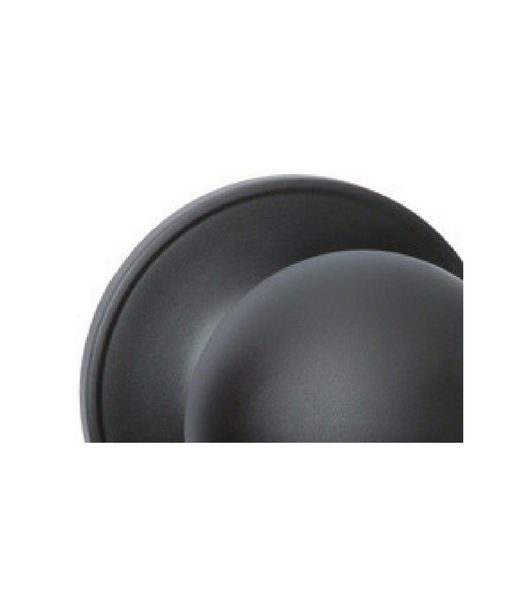

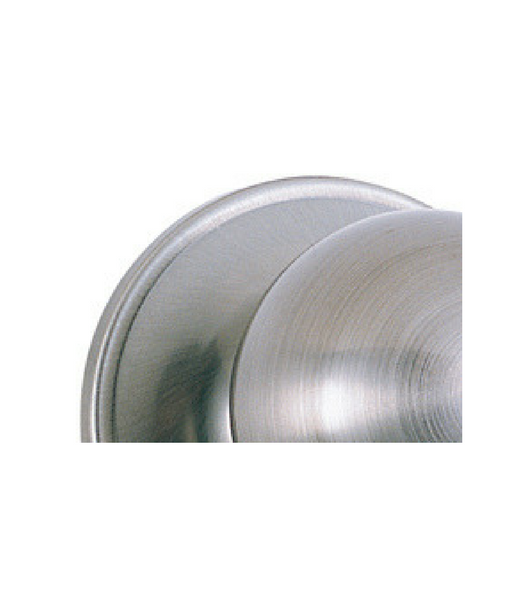

Antique Nickel, Oil Rubbed Bronze, Satin Nickel, Polished Brass
Lock Style

Entry, Privacy, Passage, Left, Right, Entry with ADA, Privacy with ADA
